Circulating pump 3 speeds - DIFF

The circulating motor pump can replace all motors on pumps with interaxial distances of 130, 160, 180, on the following :- GRUNDFOS types UPS 15-50, 15-60 et UPS 25-50, 25-60 - MYSON types CP 51, CP 53, CP 61 et CP 63 (WITH REFERENCE : 100131).- Not to be used on UP, UPS 20 and 21
Cannot replace the SALMSON or WILO motor.
In accordance with CE - European laws - with CE markManufactured by the leading French constructor.
Adaptability :Can replace motors on pumps (with plastic or cast iron housing) of the following brands of boilers:CHAFFOTEAUX - VAILLANT - DE DIETRICH - VIESSMANN - CICH (IDEAL STANDARD, CHAPPÉE) - FERROLI - POTTERTON - GLOW WORM - WORCHESTER - VOKERA IMMERGAS - MTS - OCEAN - RIELLO - COSMOGAS - JUNKERS - HERMANN - UNICAL - BUDERUS - AUTRES'

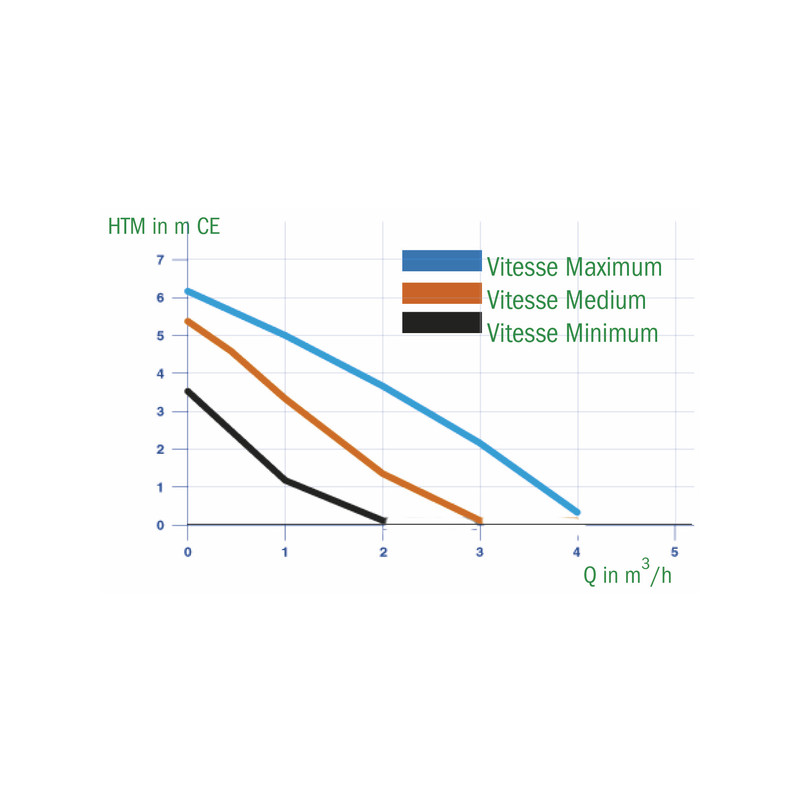

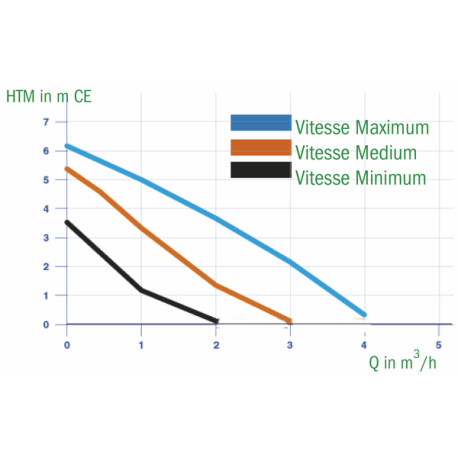

FEATURESCartridge technology.Max pressure 10 barsMax water temperature 95°CVoltage 220V - 50HzInsulation class F - 155°COutside selection of 3 speeds:1 - 0,25A - 50w2 - 0,35A - 75w3 - 0,48A - 95wCounter-clockwise rotationO-ring includedFeature AND Benefit:This part has the same quality AND efficiency standards as the original part.It can have a benefit compared to the original part.Feature: Piece different in its aspect but dedicated to the same use.MOTOR ONLYThe ISOTHERM parts are created, manufactured AND tested by Isotherm. They offer all the guarantees of interchangeability AND quality of the parts they replace.

Feature and Benefit:
This part has the same quality and efficiency standards as the original part.
It can have a benefit compared to the original part.
Feature: Piece different in its aspect but dedicated to the same use.

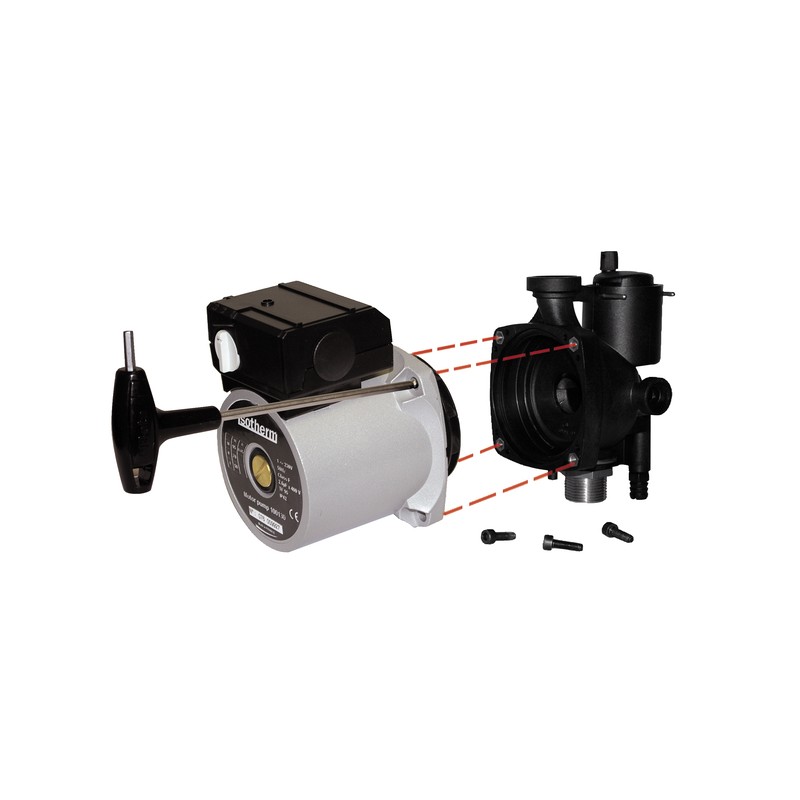

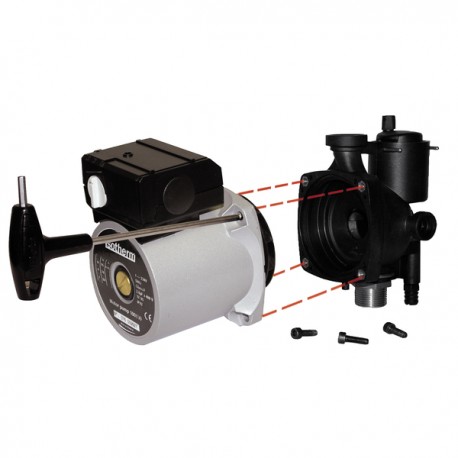

MOTOR ONLY


The ISOTHERM parts are created, manufactured AND tested by Isotherm. They offer all the guarantees of interchangeability AND quality of the parts they replace.

Given the nature of this product, it is recommended to have it installed by a professional.
