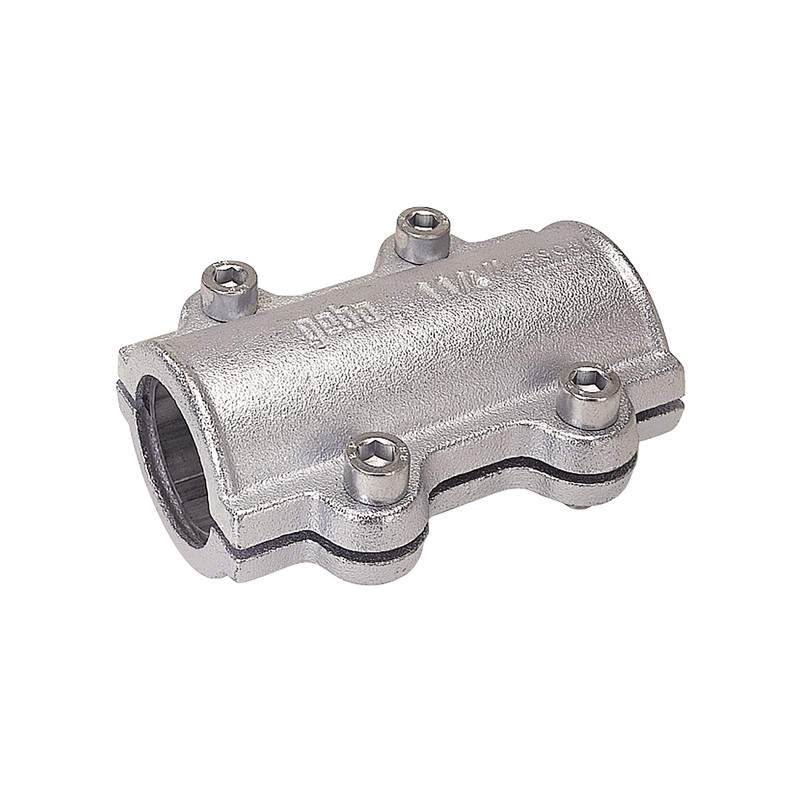

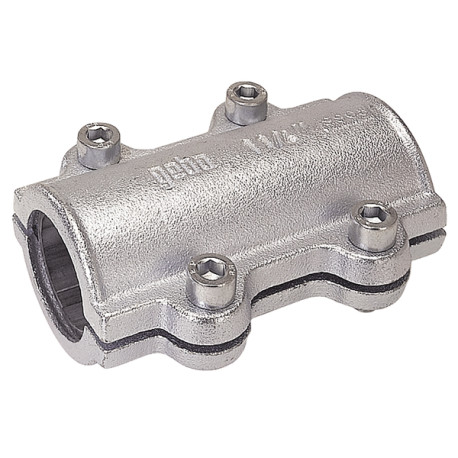

Long steel repair collar DSL 42.4 (1-1/4") - GEBO : 01.252.28.04

Repair a pipe with the GEBO DSL repair collar
Gebo, consists of the pipe connector and the repair collar. Thinking about the GEBO repair collar, necessarily takes account of its quality due to its malleable cast iron composition.
Suitable for installation on heating or DHW, this GEBO DSL long collar can be used for sealing up to a certain temperature:

Up to 25°C for domestic hot water
Up to 90°C for heating water


How to use a Gebo DSL repair collar?

To install A GEBO repair collar, start by measuring the diameter of the repair collar and the length necessary to plug. Then clean the part that will be used as the location for the repair sleeve.
Place the sleeve on the cracked part and place the GEBO repair collar over it.
Firstly, screw the screws into the dedicated holes by hand. Then use an Allen key to tighten each part. Do not forget to tighten crosswise to distribute the pressure when tightening.
Now test the installation to make sure that the leak is retained by the GEBO attachment collar.

Given the nature of this product, it is recommended to have it installed by a professional.
