Sensor pocket for immersion aquastat length 100 mm - DIFF Expand

Sensor pocket for immersion aquastat length 100 mm - DIFF

703493

New product

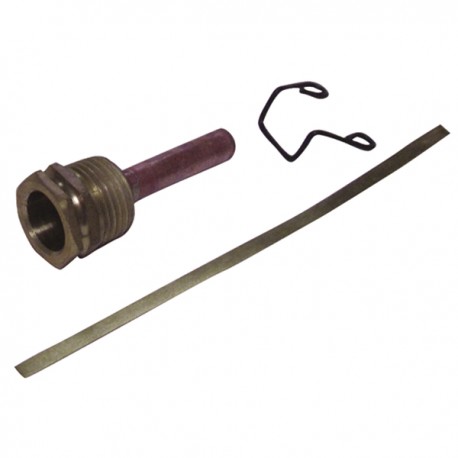

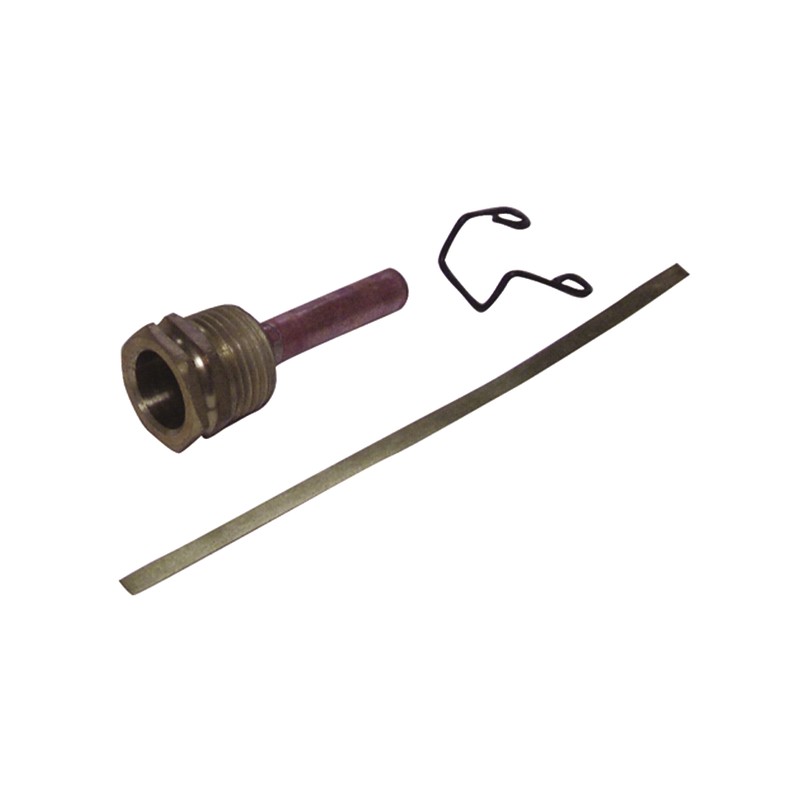

Protection sheath leakproof composed of a threaded brass fitting and a copper tube. It is destined to recieve one or more temperature sensors. Spring for application of the bulbs against the interior wall of the sheath and bocking spring to immobilize bulbs inside the sheath. Kit containing : - An immersion sleeve. Friction spring. An exterior spring for the blocking of the bulb. TECHNICAL CHARACTERISTICS : Brass fitting 6 parts. Maximum temperature 350°C. Maximum exterior pressure 10 bars. Diameter of interior sheath: 10mm. Diameter of exterior sheath: 11mm. Length of the sheath: 100mm. Diameter of the fitting : 1/2"NPT. Delivered with a steel spring.

See product description

Quantity

6,79 €

tax incl.



Description

Protection sheath leakproof composed of a threaded brass fitting and a copper tube. It is destined to recieve one or more temperature sensors Spring for application of the bulbs against the interior wall of the sheath and bocking spring to immobilize bulbs inside the sheath. Kit containing : - An immersion sleeve. - Friction spring. - An exterior spring for the blocking of the bulb. TECHNICAL CHARACTERISTICS : Brass fitting 6 parts Maximum temperature 350°C. Maximum exterior pressure 10 bars. Diameter of interior sheath: 10mm Diameter of exterior sheath: 11mm Length of the sheath: 100mm Diameter of the fitting : 1/2"NPT Delivered with a steel spring.



Given the nature of this product, it is recommended to have it installed by a professional.
