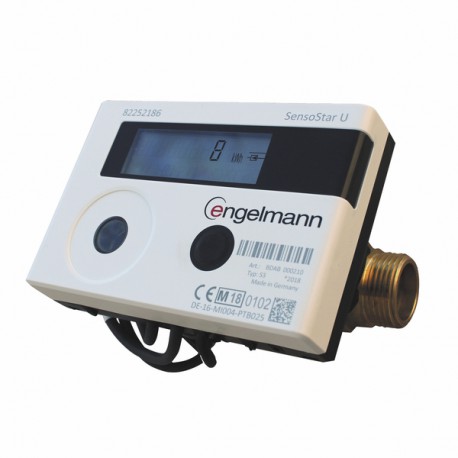

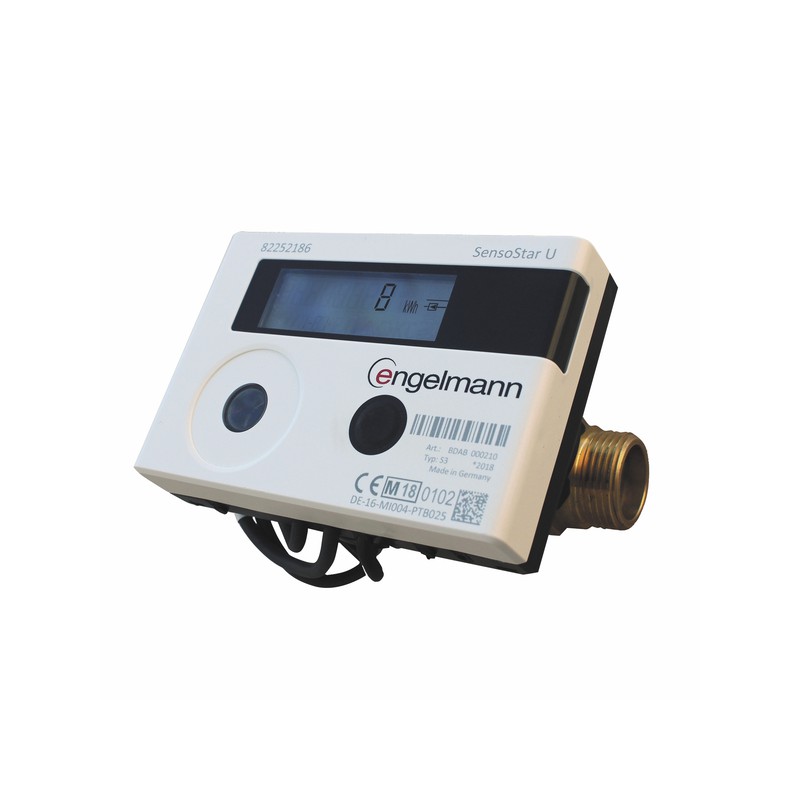

Energy meter SENSOSTAR Ch Fr bare - ENGELMANN SENSOR : BDAB079507

Sensostar Hot + Cold Bare version with location for later retrofit of a communication module (see communication modules) Ultrasonic flow meter ? measurement method: Difference in transit times EN1434 MID accuracy class: 2 DN15 to DN40 ? Qp 0.6m3/h to Qp 10m3/h Detection of Inverse flows and presence of air in the system Resistance to High temperatures for use in district heating Temperature range hot environment 15°C ? 90°C - Optional: 15°C ? 130°C - 150°C with a maximum of 2000 hours Temperature measurement cycle, dynamic: 2/ 60s Protection index: IP65 Nominal pressure PN 16b PT1000 sensors diameter 5.0mm Mandatory direct immersion mounting external probe = 1.5m ? (3m or 6m optional) 10-year battery life + reserve with replaceable battery Removable calculator, cable length 85cm (2.85m optional) Installation: possibility of modifying the supply/return placement configuration on site, if the recorded consumption = 10kWh Display energy quantity: kWh, GJ, MMBTU, Gcal; change on site if the recorded consumption = 10kWh Mounting position: all positions Calculator dimensions (HxWxD): 75mmx110mmx34.5mm Communication interfaces: Wireless M-Bus; Wireless M-Bus + 3 pulse inputs; M-Bus; M-Bus + 3 pulse inputs; 1 pulse output; 2 pulse outputs MID meter - approved commercial transaction

Given the nature of this product, it is recommended to have it installed by a professional.
