309002
New product
Group for domestic fuel. USED : It is used for boilers installations far from the fuel tank. It must be installed near the fuel tank and plugged with the burner strater. The installation is one-pipe that is without return to the tank (the return occurs on the loop of the circuit). In order to determine the necessary flow to supply the installation it needs know the type of supply of the burner pump in place. If this pump is one-pipe ( no pipe connected to the return orifice or filter of recycling) it needs consider the nozzle flow in place and provide a margin of 50% higher.

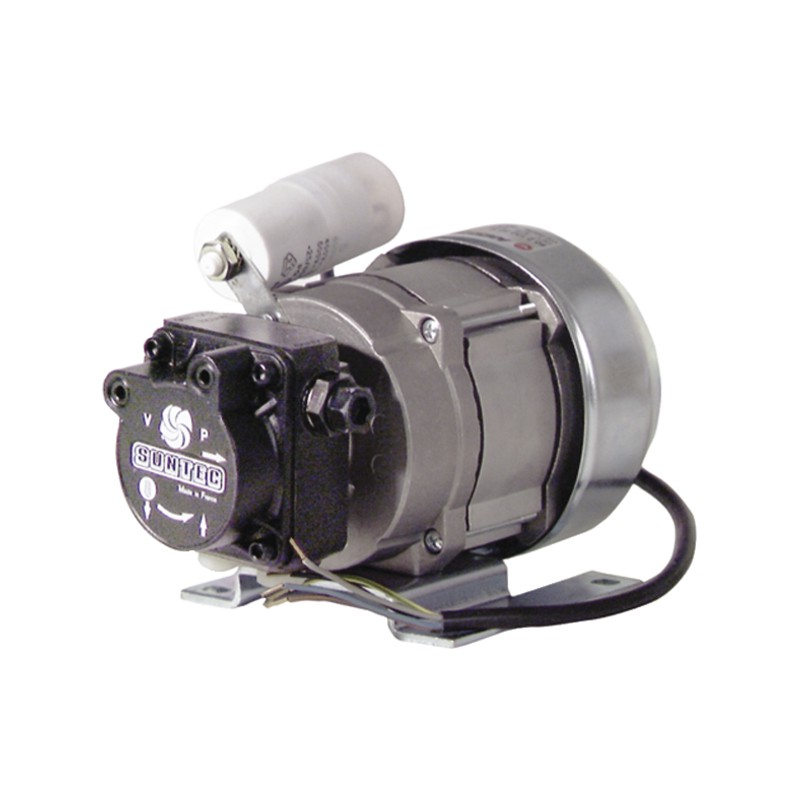

Domestic fuel oil motorpumpUSED :It is used for boiler installations far from the fuel tank. It must be installed near the fuel tank and plugged with the burner starter. The installation is one-pipe, the return at the tank being capped (these pumps can't work in two-pipe). To determine the necessary flow tosupply the installation you must know the typeof the pump burner supply in place.If the pump is one-pipe(no pipe connected to the return orifice orfilter of recycling) it needs consider the nozzle flow in place and provide a marginof 50% higher. For a burner pump connected intwo-pipe (filter with return pipe to the tank) it needs consider the flow of the burner pump and provide a margin of 50%higher.TECHNICAL FEATURES :Inlet max height 4 mInlet max length 8 mdiameter suction pipe and return tank 8mmAdjustable pressure of 0,5 to 3 barsFlow 55L/hVoltage : single-phased 220 VoltsPower 130W to 2800 turns/minuteInlet and return 1/4"Pressure outlet 1/8"NOTE: the fuel emulsifies if the heightof suction exceeds 4m and if the length ofpipe is too important that can break the group bu suction of air.So, the better working is working under pressure on the circuit andinstalling the motorpump as close as possible of thetank (example : on the cover)
Given the nature of this product, it is recommended to have it installed by a professional.
