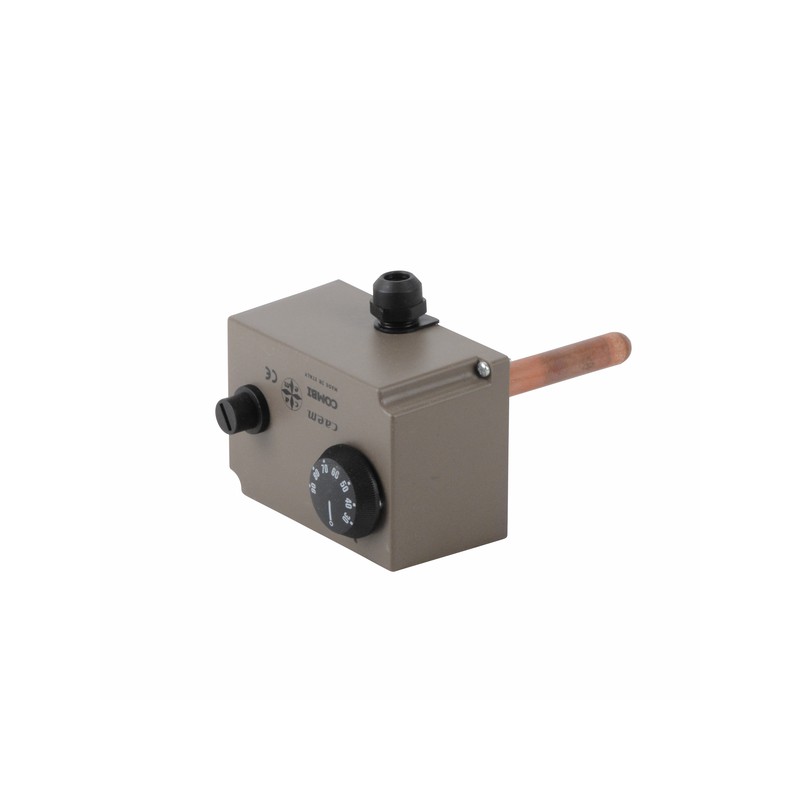

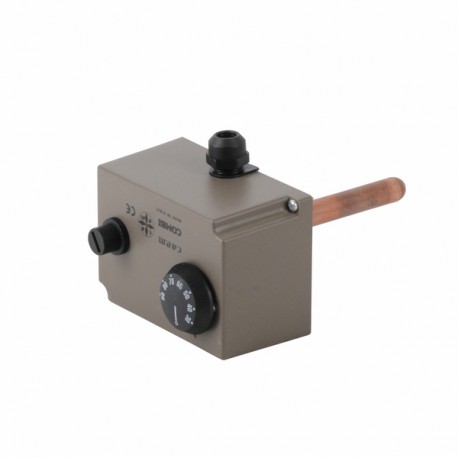

Casing box immersion aquastat caem type tu rm bdt

703930

New product



Double submersion thermostat for control and blocking overheating piping temperature Adjusting from 30 to 90°C External adjusting Differential 1°C Manual rearming on safety 95°C Reversing contact 16A - 250V Supplied with pocket M1/2" x 100mm Protection IP40 Dimensions : Length 105mm Width 75mm Height 70mm

See product description

Quantity

- +

69,70 €

tax incl.



Description

Double submersion thermostat for control and blocking overheating piping temperatureAdjusting from 30 to 90°CExternal adjustingDifferential 1°CManual rearming on safety 95°CReversing contact 16A - 250VSupplied with pocket M1/2" x 100mmProtection IP40Dimensions :Length 105mmWidth 75mmHeight 70mm

Safety Information :
To protect yourself against electrical hazards, be sure to disconnect the load from the power supply before working on it. If in doubt, don't risk a faulty installation: ask a qualified electrician for advice.



Given the nature of this product, it is recommended to have it installed by a professional.

Characteristics

Bulb Ø x Length 2x 6x95
Contact reverser oui oui
Differential 1K
Cut ability 16(5)A 10(1)A
Min. °C adjust. sécurité 30
Max. °C adjust. 95 90
Outer button oui oui
Tension 250V 380V
