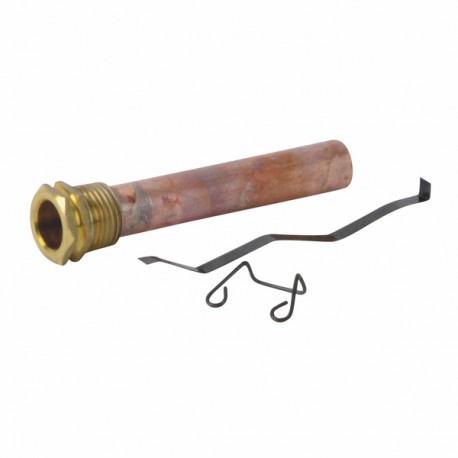

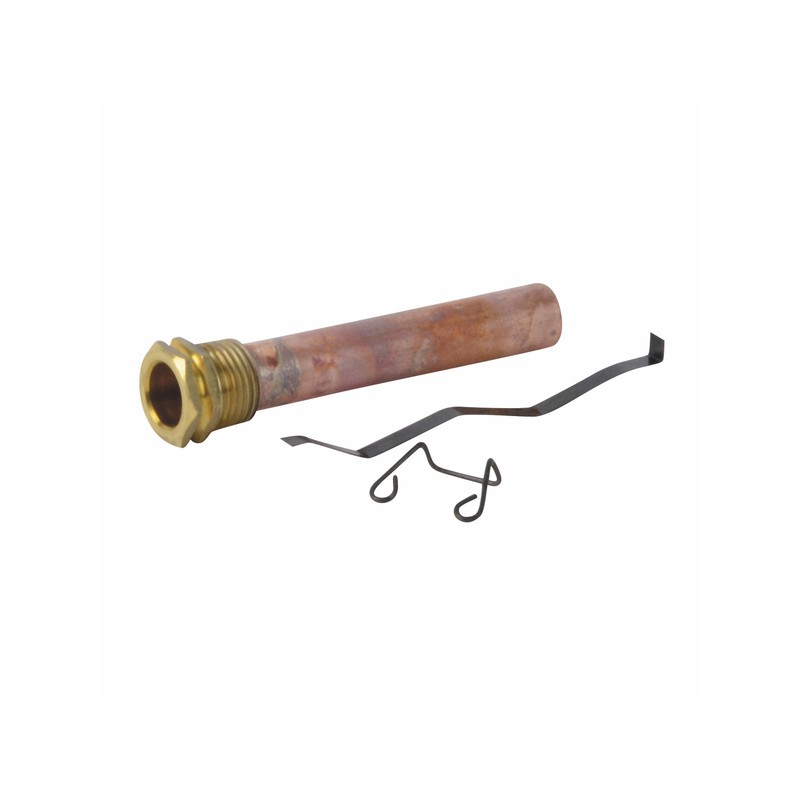

Thimble kit Ø16x100mm int14.7mm - DIFF

Sealed protective duct consisting of a brass threaded connector and a copper tube. It is designed to contain one or more temperature probes. Spring to apply the bulbs in contact with the internal wall of the duct and lock spring to immobilise the bulbs inside the duct. Kit comprising:

A thimble.
A friction spring
An external bulb locking spring.

TECHNICAL CHARACTERISTICS:

Brass fitting hex M1/2"
Maximum temperature 350°C.
Maximum external pressure 10b
Duct inside Ø: 14.7mm
Duct outside Ø: 156mm
Duct length: 100mm
Fitting Ø: 1/2? NPT
Delivered with steel spring.

Given the nature of this product, it is recommended to have it installed by a professional.
