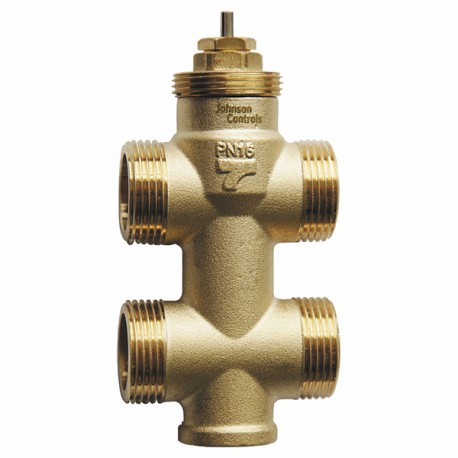

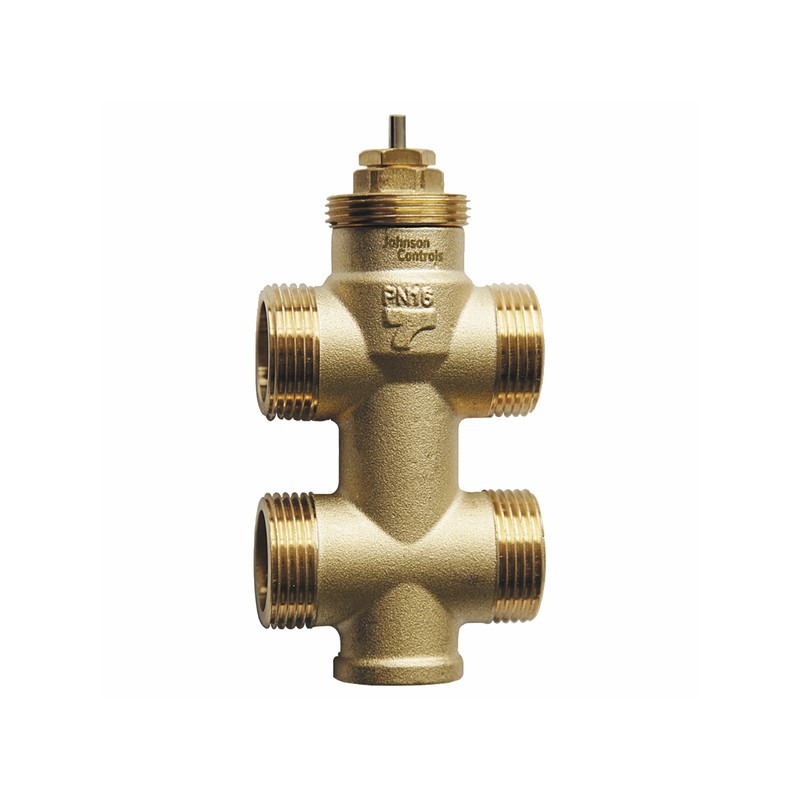

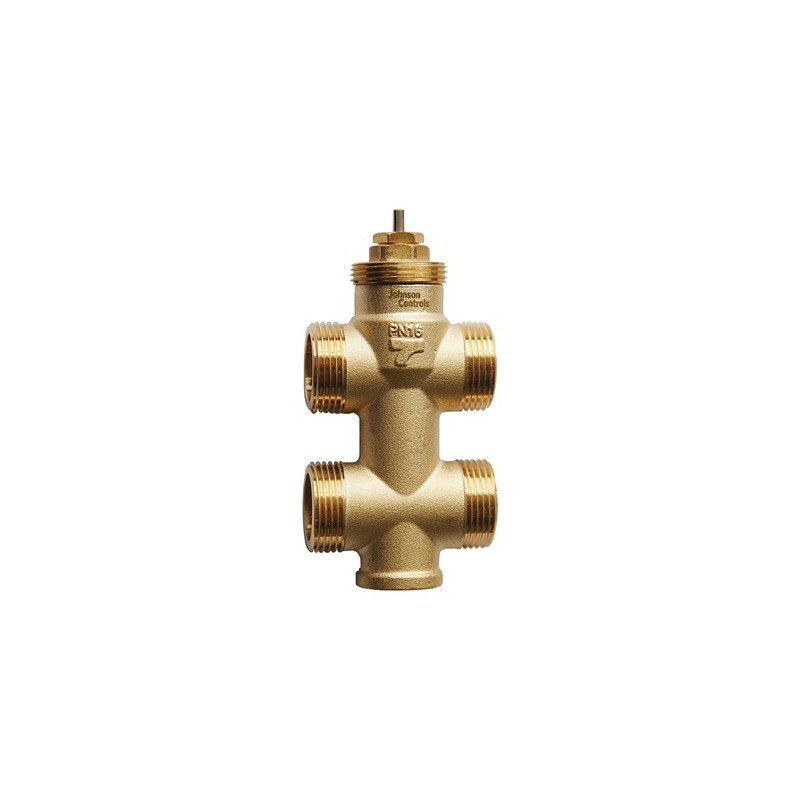

3-Way terminal unit control valve with bypass - JOHNSON CONTROLS : VG3410ES

3-Way mixing valve with bypass M30x1.5Close-off pressure DN10: 250Kpa DN15: 200 DN20: 100Fluid temperature +2° to 110°CGlycol solutions up to 50%Brass body stainless steel stem and springLeak rate 0.01% of the KvsStroke 4mmConnector M1/2? DN 10 Kv 1.6 Stroke 4mm

Given the nature of this product, it is recommended to have it installed by a professional.
